Evaporative Emission (EVAP) Canister: Removing
WARNING: This page is about a different variant/trim than selected.
Follow all safety precautions. Refer to SAFETY PRECAUTIONS .
Follow the guidelines for cleanliness. Refer to CLEAN WORKING CONDITIONS .
-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .
-- Remove the right rear wheel.
-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINERS, REMOVING AND INSTALLING .
-- Separate the electrical connector -1- with ignition switched off.

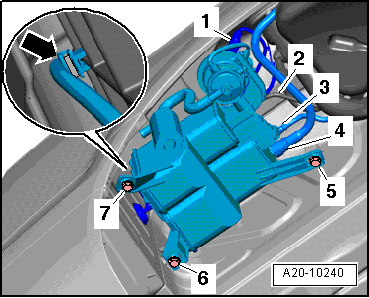

Fig 1: Identifying Vacuum Line -2-, Vent Lines -3 To 4-, And EVAP Canister Bolts Tightening Sequence: -6, 5, 7-
-- Disconnect the vent lines -3 and 4-.
-- Remove the vacuum line -2- from fuel system diagnostic pump.
-- Remove bolts -5, 6, 7- and remove EVAP canister.
-- Unclip Ground (GND) line from EVAP canister -arrow-.
