Fuel Level Sensor -G-, CHECKING

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Procedure

Fig 1: Cut Floor Covering Along Perforation
GWWA20-10184Courtesy of AUDI OF AMERICA, LLC

-- Remove right seat frame in 2nd row. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .

WARNING:

Risk of injury.

  • Wear safety gloves.

-- Cut the floor covering along the perforation -arrows- on the right side with a carpet knife -1-.

-- Fold the floor covering to the side in the -direction of arrow-.

Fig 2: Identifying Locking Flange Cover - Tightening Sequence
GWWA20-10099Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1 to 4- and remove the right locking flange cover.

-- Disconnect electrical harness connector -arrow- at the right locking flange.

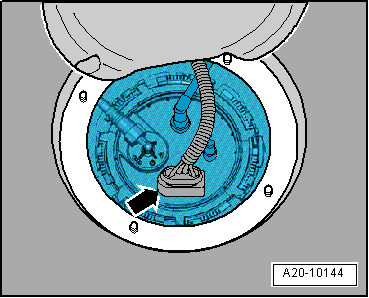

Fig 3: Identifying Electrical Harness Connector -Arrow- At Locking Flange
GWWA20-10144Courtesy of AUDI OF AMERICA, LLC

-- Connect multimeter between terminals -2 and 3- to measure resistance.

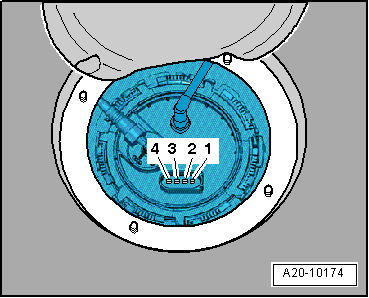

Fig 4: Identifying Terminals -2 And 3- To Measure Resistance With Multimeter
GWWA20-10174Courtesy of AUDI OF AMERICA, LLC

Fuel Level Sensor -G- installed:

NOTE:

If measured value is 0 Ω there is a short circuit. If measured value is ∞ there is and open circuit in the wiring.

To check resistance values "tank full" or "tank empty", the fuel level sensor must be removed and the floater of the sensor must be placed in upper or lower end position. Refer to Fuel Level Sensor -G- .

With fuel level sensor removed, the following values are obtained because of the greater deflection of the floater arm:

With the Fuel Level Sensor -G- removed:

Assemble in reverse order of disassembling. Note the following:

-- Install locking flange cover.

-- Install the frame into the floor covering. Refer to FRONT FLOOR COVERING, REMOVING AND INSTALLING .

-- Install right seat frame in 2nd row. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .
