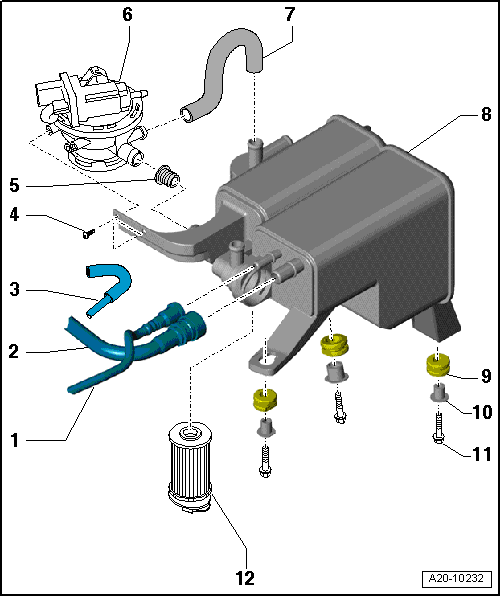

EVAP System Overview
WARNING: This page is about a different variant/trim than selected.
- Vent Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Vent Line
- To fuel tank
- Vacuum Line
- Diagnostic pump/engine
- Bolt
- Tightening specification: 1.2 Nm
- Gasket
- Leak Detection Pump -V144-
- Installed location: Under wheel housing liner in right rear wheel housing
- Checking in Guided Functions using a vehicle diagnostic tester
- Removing and installing, refer to Leak Detection Pump -V144-
- Connecting Hose
- Leak diagnosis pump/air filter
- EVAP Canister
- Installed location: Under wheel housing liner in right rear wheel housing
- Rubber Grommet
- Bushing
- Bolt
- Tightening specification: 9 Nm
- Air Filter Housing
- For the leak detection pump
- No maintenance schedule
