EVAP Canister And Leak Detection System Hose Routing
WARNING: This page is about a different variant/trim than selected.
NOTE:
The hose diagram shows the 4.2L FSI engine.

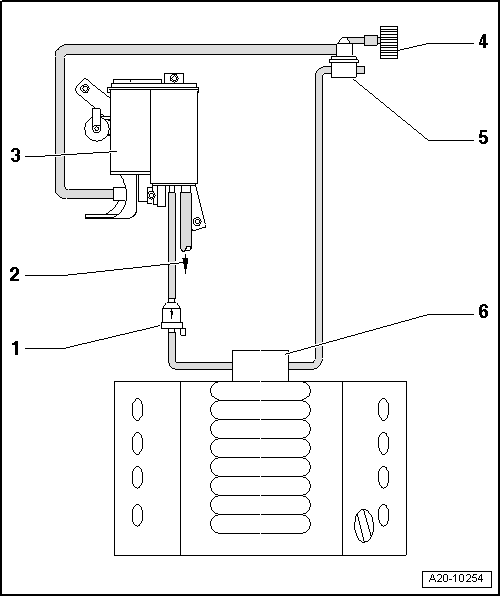

- EVAP Canister Purge Regulator Valve 1 -N80-
- Installed location: Right rear in engine compartment
- To Fuel Tank Filler Tube
- EVAP Canister
- Installed location: Under wheel housing liner in right rear wheel housing
- Air Filter Housing
- For the Leak Detection Pump -V144-
- Leak Detection Pump -V144-
- Installed location: Under wheel housing liner in right rear wheel housing
- Checking in Guided Functions using a vehicle diagnostic tester
- Throttle Valve Control Module -J338-
