Overview - Charge Air Cooling Circuit Cooler

WARNING: This page is about a different variant/trim than selected.
NOTE:

The left charge air cooling circuit cooler is shown in the illustration.

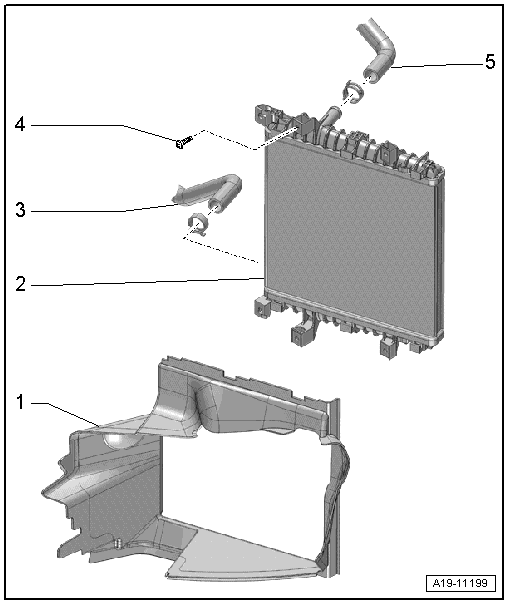

Fig 1: Charge Air Cooling Circuit Cooler Overview
GWWA19-11199Courtesy of AUDI OF AMERICA, LLC
  1. Air Guide
  2. Cooler for Charge Air Cooling Circuit
  3. Coolant Hose
  4. Bolt
    • 9 Nm
  5. Coolant Hose
