Overview - Coolant Pipes

WARNING: This page is about a different variant/trim than selected.

Coolant Pipe on Engine

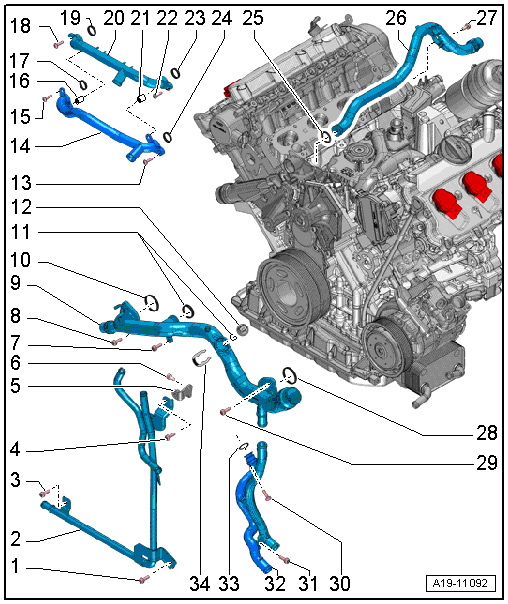

Fig 1: Coolant Pipes Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm
Left Front Coolant Pipes
- Removing and installing. Refer to LEFT FRONT COOLANT PIPES, REMOVING AND INSTALLING
Bolt
- 9 Nm
Bolt
- 9 Nm
Bracket
Bolt
- 22 Nm
Bolt
- 2.5 Nm
Bolt
- 9 Nm
Front Coolant Pipe
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING
Seal
- Replace
O-Rings
- Replace
Engine Coolant Temperature Sensor -G62-
- Removing and installing. Refer to Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING
Bolt
- 5 Nm
Lower Coolant Pipe on Supercharger
- Together with -20-. Removing and installing. Refer to SUPERCHARGER COOLANT PIPES, REMOVING AND INSTALLING .
Bolt
- 5 Nm
Alignment Sleeve
Seal
- Replace
Bolt
- 5 Nm
Seal
- Replace
Upper Coolant Pipe on Supercharger
- Together with -14-. Removing and installing. Refer to SUPERCHARGER COOLANT PIPES, REMOVING AND INSTALLING .
Alignment Sleeve
Bolt
- 5 Nm
Seal
- Replace
Seal
- Replace
O-Ring
- Replace
Upper Coolant Pipe
- Removing and installing. Refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING
Bolt
- 9 Nm
Seal
- Replace
Bolt
- 9 Nm
Bolt
- 3 Nm + 90° turn
- Replace
Bolt
- 3 Nm + 90° turn
- Replace
Left Coolant Pipes
- Removing and installing. Refer to LEFT COOLANT PIPES, REMOVING AND INSTALLING
O-Ring
- Replace
Clamp

Coolant Pipes on Transmission

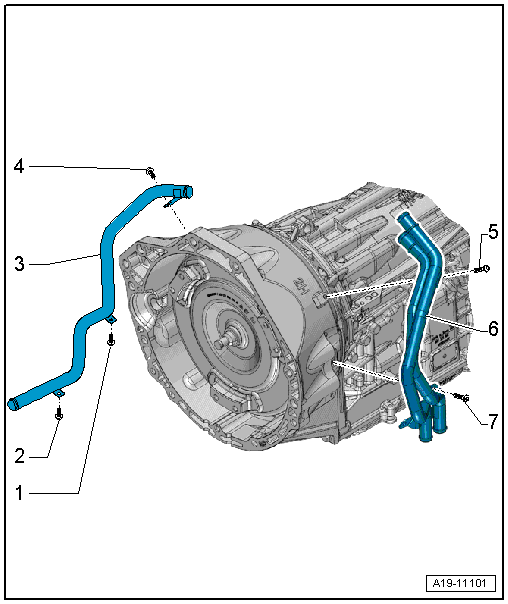

Fig 2: Identifying Coolant Pipes On Transmission

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm
Bolt
- 9 Nm
Right Coolant Pipe on Transmission
- Removing and installing. Refer to RIGHT COOLANT PIPE ON TRANSMISSION, REMOVING AND INSTALLING
Bolt
- 9 Nm
Bolt
- 9 Nm
Left Rear Coolant Pipes on Transmission
- Removing and installing. Refer to LEFT REAR COOLANT PIPES ON TRANSMISSION, REMOVING AND INSTALLING .
Bolt
- 9 Nm

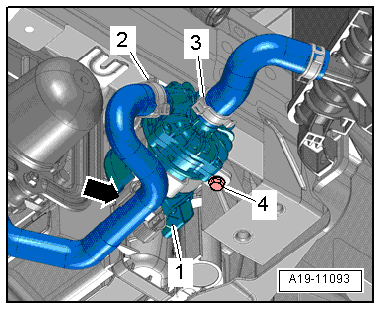

Fig 3: Charge Air Cooling Pump -V188-, Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolt -4- to 9 Nm.
