Right Cylinder Head Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Ignition Coil Puller T40039 Removing Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ignition coils. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

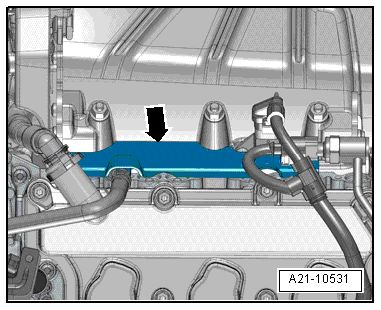

-- Remove the cover -arrow-.

Fig 2: Cover -Arrow-

Courtesy of AUDI OF AMERICA, LLC

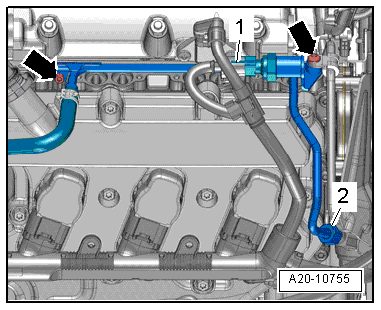

-- Disconnect the connector -1-.

Fig 3: Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of defects caused by dirt.

Follow the guidelines for cleanliness when working on the fuel supply system. Refer to FUEL SUPPLY, INJECTION SYSTEM AND CHARGING SYSTEM, CLEAN WORKING CONDITIONS .

WARNING:

Risk of injury from fuel.

To reduce fuel pressure, lay cloths around connecting point before opening fuel system and carefully loosen.

-- Remove the bolts -arrows-.

-- Loosen the union nut -2- and swivel the fuel supply line to the side.

-- Seal the open lines and connections with clean plugs from the Engine Bung SetVAS6122.

CAUTION:

Risk of violating emissions legislation.

Do not open the hose connection -arrow-.

-- Remove the bolts in the following sequence -12 through 1- and lay the right cylinder head aside with the crankcase ventilation hose -arrow- connected.
