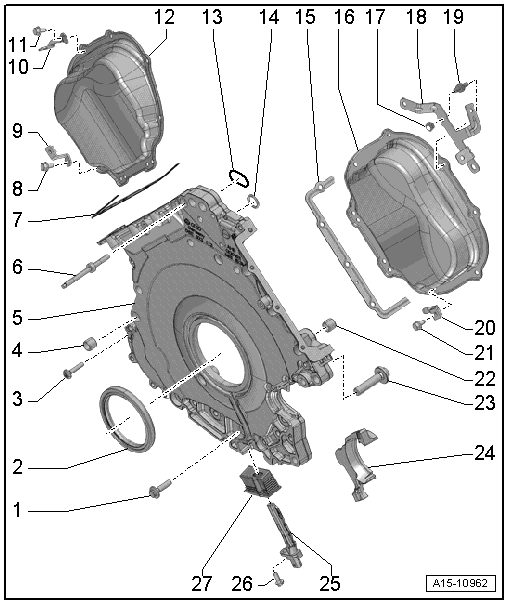

Overview - Timing Chain Covers
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specification and sequence. Refer to Fig 4.
- Shaft Seal
- For the crankshaft on the transmission side
- Replacing. Refer to CRANKSHAFT SEAL, REMOVING AND INSTALLING, TRANSMISSION SIDE .
- Bolt
- Tightening specification and sequence. Refer to Fig 4.
- Alignment Sleeve
- Quantity: 2
- Timing Chain Cover Lower Section
- Sleeve installation instructions. Refer to Installing
- Removing and installing. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING
- Threaded Pin
- Tightening specification -item 13- OVERVIEW - OIL FILTER HOUSING .
- Left Cylinder Head Gasket
- Bolt
- Replace
Tightening specification and sequence. Refer to Fig 2
- Replace
- Bracket
- For wiring harness
- Bracket
- For wiring harness
- Bolt
- Replace
Tightening specification and sequence. Refer to Fig 2
- Replace
- Left Timing Chain Cover
- Removing and installing. Refer to LEFT AND RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING
- Seal
- Replace
- Seal
- Replace
- Right Cylinder Head Gasket
- Right Timing Chain Cover
- Removing and installing. Refer to LEFT AND RIGHT TIMING CHAIN COVER, REMOVING AND INSTALLING
- Nut
- 9 Nm
- Bracket
- For electric wires
- Threaded Pin
- Tightening specification and sequence. Refer to Fig 3
- Bracket
- For heat shield
- Bolt
- Replace
- Tightening specification and sequence. Refer to Fig 3
- Alignment Sleeve
- Quantity: 2
- Bolt
- Replace
- Tightening specification and sequence. Refer to Fig 3
- Cover
- For the opening for the starter
- Engine Speed Sensor -G28-
- Bolt
- Tightening specification. Refer to Special Tools .
- Cover
- for Engine Speed Sensor -G28-
NOTE:
Replace any bolts that were tightened with an additional turn.
The brackets -arrows A and B- are connected with the left timing chain cover.
-- Tighten the bolts in two steps in the sequence shown.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 8- | 5 Nm |
| 2. | -1 to 8- | Tighten 90° additional turn |
NOTE:
Replace any bolts that were tightened with an additional turn.
The mount -arrow- is affixed with the right timing chain guard.
-- Tighten the bolts in two steps in the sequence shown.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 8- | 5 Nm |
| 2. | -1 to 8- | Tighten 90° additional turn |
NOTE:
Replace any bolts that were tightened with an additional turn.
-- Tighten bolts in stages as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -Arrows- | 3 Nm |
| 2. | -1 to 10- | 3 Nm diagonally |
| 3. | -1, 2, 4, 5 and 7- | Tighten 90° additional turn |
| 4. | -Arrows- | 9 Nm |
| 5. | -8, 9, and 10- | 8 Nm |
| 6. | -8, 9, and 10- | Tighten 90° additional turn |
| 7. | -3- | 16 Nm |
| 8. | -6- | 20 Nm |
| 9. | -6- | Tighten 180° additional turn |
