Driver Thorax Airbag Igniter -N199- AND Front Passenger Thorax Airbag Igniter -N200-, STANDARD POWER SEAT, REMOVING AND INSTALLING: Installing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Follow the additional safety precautions when working with the side airbag. Refer to SIDE AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
Install in reverse order of removal. Observe the following when doing so:

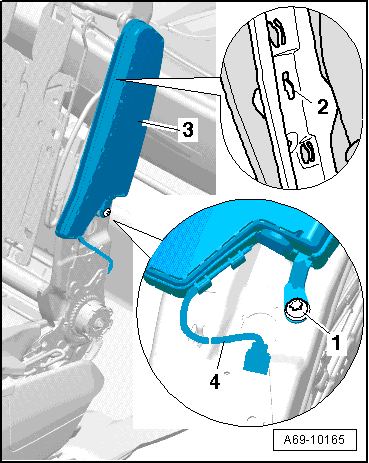

-- Engage side airbag -3- in backrest with hooks -2-.
-- Ensure that airbag cable -4- is routed correctly and secured.
Make sure the connectors are installed correctly and are secure.
Make sure the wires do not get caught.
-- Replace screw -1-.
-- Tighten new screw -1- to the specification.
-- Install the front seat.
- Mechanically adjustable seat. Refer to FRONT DRIVER SEAT OVERVIEW .
- Memory seat, power seat and Comfort seat. Refer to FRONT DRIVER SEAT OVERVIEW .
Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. Maintain personal safety when connecting the battery by staying out of airbag deployment areas, keeping a distance from belt tensioners/seat belts and ensuring no other people are in the vehicle interior at the moment when the battery is connected.
-- Switch on ignition.
-- Turn on the ignition and connect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- If the Airbag Indicator Lamp -K75- indicates a fault, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.
