Center Three-Point Seat Belt (2ND Row), Removing And Installing: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Remove the bench seat (two-thirds bench). Refer to BENCH SEAT, REMOVING AND INSTALLING .

WARNING:

Make sure the backrest is locked (zero position) or it could tip forward accidentally.

-- Remove screw -2- for belt anchor/belt webbing -3- at seat frame, noting rubber disc -1-.

Fig 1: Belt Webbing -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove cover and upholstery from backrest. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING .

-- Remove the pop rivets -A- for securing the seat belt cover -B-. Do this by drilling out the pop rivet heads.

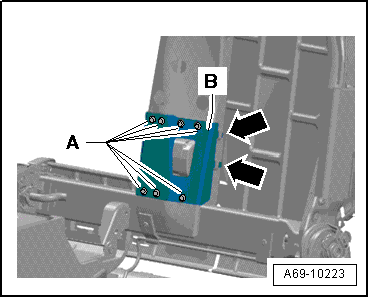

Fig 2: Pop Rivets -A- For Securing The Seat Belt Cover -B-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove cover from backrest mounting tabs -arrows-.

-- Remove nut -1- from threaded pins -2-.

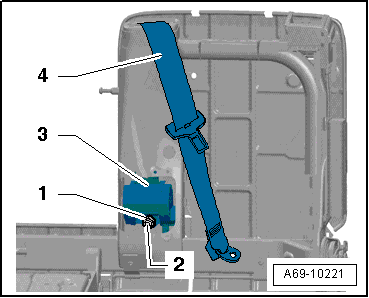

Fig 3: Belt Roller -3- From Threaded Pins And Guide Belt Webbing -4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove belt roller -3- from threaded pins and guide belt webbing -4- back when removing.

NOTE:

Remove drill shavings and remaining pieces of pop rivets from backrest and seat belt.
