Belt Latch And Belt Anchor, Unlocking And Locking

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There are 2 versions of the belt mounting.

Version A - Belt mounting point with belt lock

Releasing

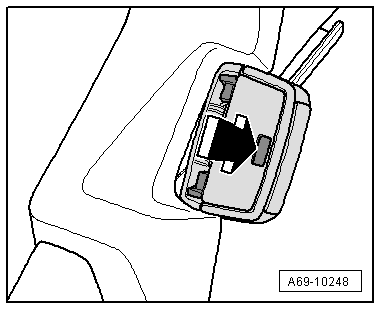

Fig 1: Belt Latch Release Mechanism Through The Opening -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Using the ignition key, press the belt latch release mechanism through the opening -arrow-.

Locking

-- Insert the belt tongue into the belt latch until it audibly clicks.

Version B - Belt mounting point with belt anchor

Releasing

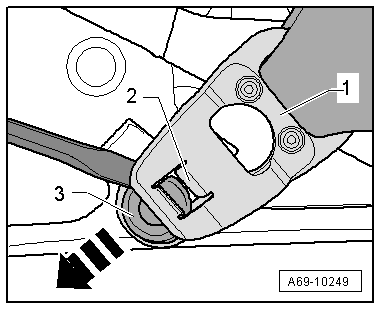

Fig 2: Belt Anchor -1-, Securing Spring -2-, T-Pin On Seat -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover. Refer to COVER, REMOVING AND INSTALLING .

-- Press securing spring -2- outward using screwdriver (max. 4 mm tip width).

-- Press the belt anchor down all the way to the T-bolt -3- -arrow-.

-- Pull belt anchor -1- outward from T-pin on seat -3-.

Locking

Install in reverse order of removal. Observe the following when doing so:

-- After installing, make sure the tab in the securing spring -2- in latched in completely on the T-bolt -3- on the seat frame.

CAUTION:

Tug on seat belt to ensure that seat belt is securely locked to seat.
