Belt Anchor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Position seat as far forward as possible using fore/aft adjustment.

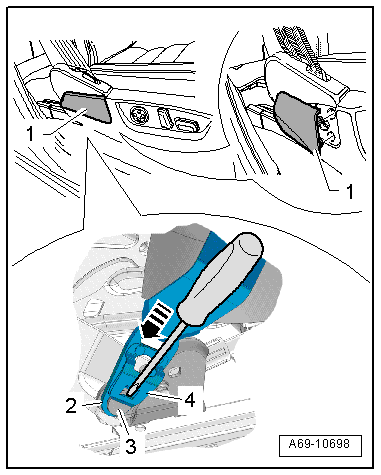

-- Remove assembly cover -1-.
CAUTION:
- The spring -4- will get bent if it is removed incorrectly. Replace the three-point seat belt if the spring gets bent.
- Move the spring -4- just far enough until it is possible to unlock the tab on the spring.
-- Release the spring catches -4- by inserting a small screwdriver in the opening in the spring -arrow-.
-- Move the belt anchor -2- down and detach at the pin -3-.
-- Pull belt anchor -1- outward from T-pin on seat -2-.
-- Guide belt anchor -1- through belt guide on seat frame -3-.
NOTE:
It is not necessary to remove backrest trim -4- to perform this work on vehicles with electric seat adjusters.
