Front Passenger Airbag Unit Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

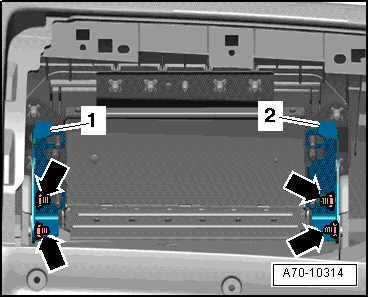

Fig 1: Front Passenger Airbag Unit Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front passenger airbag unit. Refer to FRONT PASSENGER AIRBAG UNIT, REMOVING AND INSTALLING .

-- Remove nuts -arrows-.

-- Disengage brackets -1- and -2- at the airbag unit guide and remove the bracket from the instrument panel central tube.
