Front Passenger Airbag Deactivation Key Switch -E224-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Turn on the ignition.

-- Disconnect the ground cable from the battery with the ignition on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

Fig 1: Pressing Catch -1- In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling airbag units (for example, disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Press securing catch -1- in direction of -arrow- until connection disengages.

-- Remove electrical connector -2-.

-- Remove the bolts -2-.

Fig 2: Removing Key Switch Housing From Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs in the direction of the -arrow- and remove the key switch housing from the glove compartment.

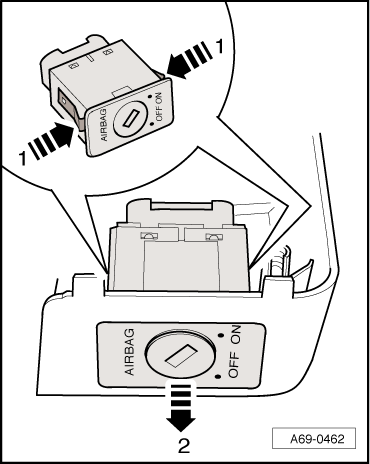

-- Release left and right retaining springs -arrow 1- and push Front Passenger Airbag Deactivation Key Switch -E224- -Item 1- out of key switch housing -arrow 2-.

Fig 3: Removing Front Passenger Airbag Deactivation Key Switch From Key Switch Housing

Courtesy of AUDI OF AMERICA, LLC
