Driver Airbag Igniter -N95- AND Driver Airbag Igniter 2 -N250-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Position the steering wheel so that it is as far rearward and up as possible, using the full adjustment range of the steering column adjuster.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Turn on the ignition.

-- Disconnect the ground cable from the battery with the ignition on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove cover cap -1- left and right from backside of steering wheel -arrow-.

Fig 1: Cover Cap Left And Right From Backside Of Steering Wheel, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove screw -arrow- at left and right on back side of steering wheel.

Fig 2: Driver Airbag Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Bring steering wheel to center position (wheels straight).

WARNING:

Before handling airbag units (for example, disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Pull the driver airbag unit from the steering wheel a bit.

-- Push connector lock -4- to stop -arrow- ; this disconnects electrical connection -2- and it can be removed.

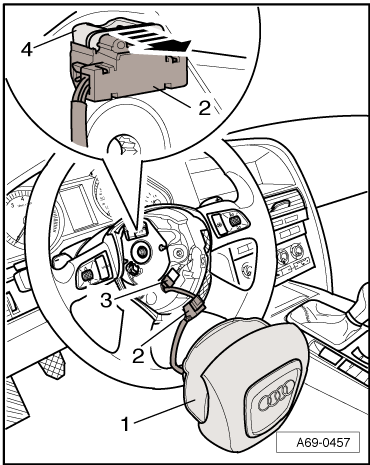

Fig 3: Identifying Connector Lock, Electrical Connection, And Airbag Unit

Courtesy of AUDI OF AMERICA, LLC

-- Remove airbag unit -1- from the steering wheel.

-- If applicable, disconnect electrical connection -3-.

-- Set the airbag unit down so that the padding faces upward.
