Airbag Unit Harness Connector, Replacing: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

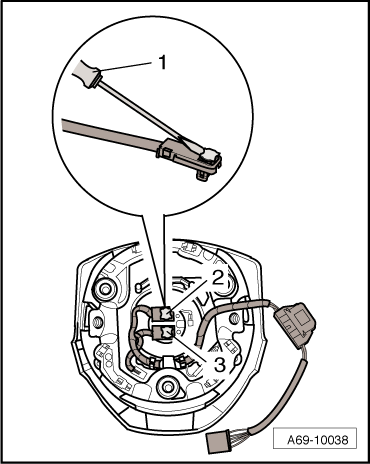

Fig 1: Electrical Connector At Airbag Module, Disconnecting
GWWA69-10038Courtesy of AUDI OF AMERICA, LLC

-- Remove the driver airbag unit. Refer to Driver Airbag Igniter -N95- AND Driver Airbag Igniter 2 -N250-, REMOVING AND INSTALLING .

-- Disconnect electrical connections -2- and -3- on airbag with screwdriver -1-.
