Replacing The Airbag Unit Harness Connector: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Remove the driver airbag. Refer to Driver Airbag Igniter -N95- AND Driver Airbag Igniter 2 -N250-, REMOVING AND INSTALLING .

Vehicles with a 3-Spoke Steering Wheel:

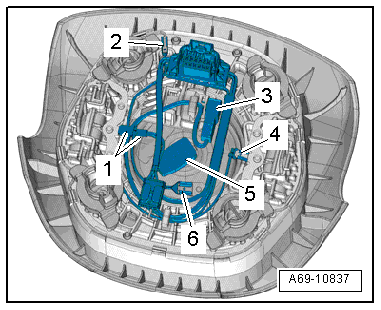

Fig 1: Airbag Unit Harness Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Release the retaining tabs in order to disconnect the connectors -1-, -2-, -4- and -6-.

-- Disconnect the connector -3- from the adapter and -5- for Driver Airbag Igniter -N95-.

-- To do this release connector lock -2- using a small screwdriver -arrow- and disconnect harness connector -1-.

Fig 2: Disconnect Harness Connector -1-, Connector Lock -2-

Courtesy of AUDI OF AMERICA, LLC

-- Unhook and remove the wiring set from the bracket.

Vehicles with a 4-spoke steering wheel:

Fig 3: Airbag Unit Harness Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

-- Release the retaining tabs in order to disconnect the connectors -1-, -2-, -4- and -6-.

-- Disconnect the connector -3- from the adapter and -5- for Driver Airbag Igniter -N95-.

-- To do this release connector lock -2- using a small screwdriver -arrow- and disconnect harness connector -1-.

Fig 4: Disconnect Harness Connector -1-, Connector Lock -2-

Courtesy of AUDI OF AMERICA, LLC

-- Unhook and remove the wiring set from the bracket.
