Belt Fastening Detection, Removing And Installing: Installing
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Install in reverse order of removal. Observe the following when doing so:
-- Position circuit board -4- from Front Passenger Seat Occupant Sensor -G128- -2- in cut-out -3- in seat padding -1-.

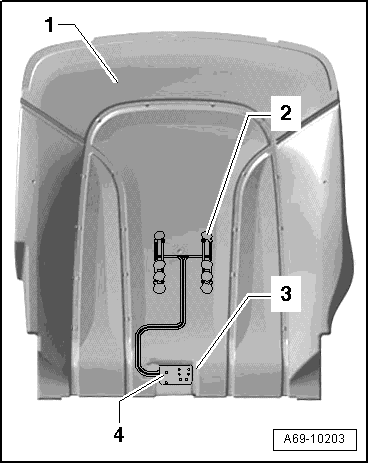

Fig 1: Identifying Front Passengers Seat Occupied Sensor G128 Connector & Front Passengers Seat Occupied Sensor G128
-- Align Front Passenger Seat Occupant Sensor -G128- -2- on seat padding -1- as shown in illustration.
-- Remove protective foil and adhere Front Passenger Seat Occupant Sensor -G128- -2- to seat padding -1-.
NOTE:
Make sure the Front Passenger Seat Occupant Sensor -G128- is not covered by seat heater element heating coils.
