Component Location Overview

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

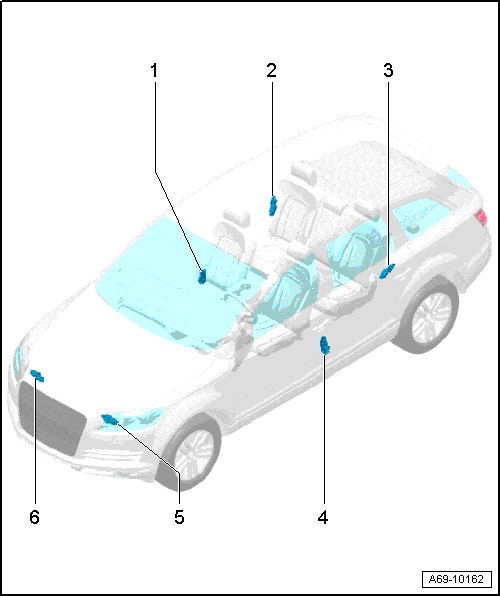

Fig 1: Airbag Crash Sensors Component Overview

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Side Airbag Crash Sensor -G180-
- Installation location: at lower right B-pillar in the sill panel area.
- Removing and Installing. Refer to Driver Side Airbag Crash Sensor -G179- AND Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
Passenger Side Rear Side Airbag Crash Sensor -G257-
- Installation location: on the rear wheel liner below the wheel housing trim.
- Removing and Installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- AND Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
Driver Side Rear Side Airbag Crash Sensor -G256-
- Installation location: on the rear wheel liner below the wheel housing trim.
- Removing and Installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- AND Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
Driver Side Airbag Crash Sensor -G179-
- Installation location: at lower left B-pillar in the sill panel area.
- Removing and Installing. Refer to Driver Side Airbag Crash Sensor -G179- AND Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
Driver Front Airbag Crash Sensor -G283-
- Installation location: on the left of the engine compartment between the headlamp and radiator.
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283- AND Front Passenger Front Airbag Crash Sensor -G284-, REMOVING AND INSTALLING .
Passenger Side Front Airbag Crash Sensor -G284-
- Installation location: on the right of the engine compartment between the headlamp and radiator.
- Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283- AND Front Passenger Front Airbag Crash Sensor -G284-, REMOVING AND INSTALLING .
