Right Cylinder Head Cover: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect hose -1- to Secondary Air Injection (AIR) pump.

Fig 1: Identifying Hose To Secondary Air Injection Pump, Electrical Harness Connector, Right Air Guide Hose, And Retaining Clips

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical harness connector -4- at Mass Airflow (MAF) sensor -G70-.

-- Remove right air guide hose -3- from air duct.

-- Release retaining clips -2- and remove upper right section of air filter housing from lower section.

Vehicles with Air Suspension

NOTE:

If necessary, remove electrical connector for Heated Oxygen Sensor (HO2S) 2 -G108- from bracket at right strut tower for better access.

-- Press circlip -1- forward from hose coupling.

Fig 2: Circlip, Release Ring And Ventilation Hose

Courtesy of AUDI OF AMERICA, LLC

-- Press release ring -2- down -arrows- and remove vent hose -3- from upper section of air filter.

All Vehicles

-- Remove bolts -3 and 6- on right cylinder head.

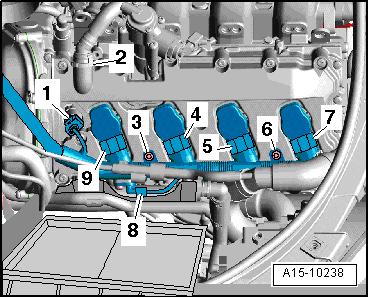

Fig 3: Identifying Bolts On Right Cylinder Head & Electrical Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connectors -1, 4, 5, 7, 8, 9-.

-- Remove crankcase ventilation hose -2-.

-- Remove the ignition coils using the T40039.

Fig 4: Identifying Ignition Coil Puller T40039 Removing Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

-- Remove right cylinder head cover bolts in sequence -16 to 1-.

Fig 5: Identifying Right Cylinder Head Cover Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove cylinder head cover.
