Left Cylinder Head Cover: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect electrical connector -2- at Mass Airflow (MAF) sensor 2 -G246-.

Fig 1: Locating Electrical Connector, Air Guide Hose, And Retaining Clips

Courtesy of AUDI OF AMERICA, LLC

-- Remove left air guide hose -1- from air duct.

-- Release retaining clips -3- and remove upper left section of air filter housing.

-- Remove oil dipstick -10- from guide tube.

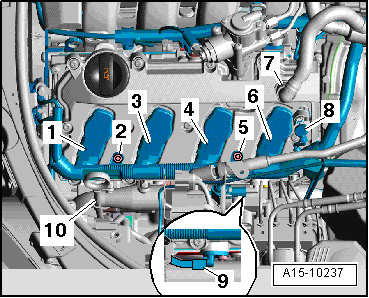

Fig 2: Identifying Oil Dipstick, Bolts, Electrical Connectors, And Ventilation Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 5-.

-- Disconnect electrical connectors -1, 3, 4, 6, 8, 9- and free up wiring harness.

-- Remove crankcase ventilation hose -7- by pressing release buttons.

-- Remove the ignition coils using the T40039.

Fig 3: Identifying Ignition Coil Puller T40039 Removing Ignition Coils

Courtesy of AUDI OF AMERICA, LLC

-- Remove left cylinder head cover bolts in sequence -15 to 1-.

Fig 4: Identifying Left Cylinder Head Cover Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove cylinder head cover.
