Camshafts, Checking Axial Clearance

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Dial Gauge HolderVW 387
Dial GaugeVAS 6079

Procedure

-- Perform measurement with guide frame removed.

-- Secure VW 387 with VAS 6079 on cylinder head as shown in illustration.

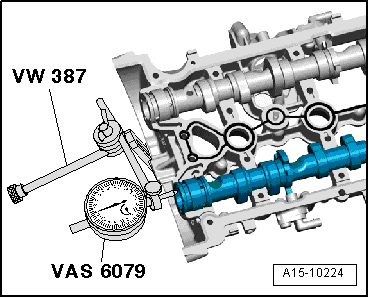

Fig 1: Measuring Axial Clearance Of Camshaft

Courtesy of AUDI OF AMERICA, LLC

-- Determine axial clearance.

Axial clearance: 0.100 to 0.191 mm.
