Ribbed Belt: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Pull front engine cover off -arrows-.

Fig 1: Identifying Front Engine Cover, Electrical Connector, And Left Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- Pivot tensioning device in direction of -arrow- to relieve tension on ribbed belt.

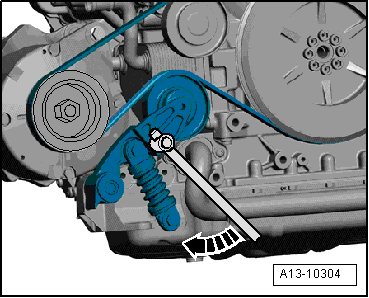

Fig 2: Releasing Ribbed Belt Tension

Courtesy of AUDI OF AMERICA, LLC

-- Remove ribbed belt and release tensioning device.
