Ribbed Belt: Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in reverse order of removal, note the following:

-- Route ribbed belt -2- over belt pulley in the specified sequence.

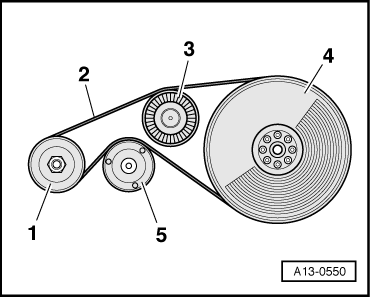

Fig 1: Placing Ribbed Belt Over Belt Pulley In Sequence

Courtesy of AUDI OF AMERICA, LLC

1 - Generator

3 - Idler roller

4 - Vibration damper

5 - Tensioning roller

NOTE:

When installing the ribbed belt, make sure it is seated correctly on the pulleys.

-- Start the engine and check the belt routing.
