Generator Ribbed Belt Drive Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

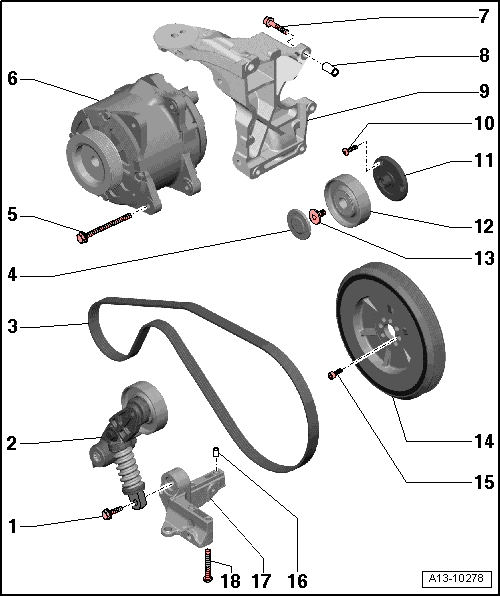

- Bolt
- 22 Nm
- Tensioning Device for Ribbed Belt
- Ribbed Belt
- Check for wear
- Do not kink
- Before removing, mark direction of rotation using chalk or felt-tip marker
- Removal and installation, refer to RIBBED BELT
- When installing, make sure it is seated correctly on the pulleys
- Cap
- Bolt
- Tightening specifications: 65 Nm.
- Generator
- Removal and installation, refer to GENERATOR
- Bolt
- M8 - 22 Nm
- M10 - 46 Nm
- Alignment Bushing
- For generator bracket
- 2 pieces
- Generator Bracket
- Illustration does not correspond to version in vehicle
- Bolt
- 9 Nm
- Bracket
- For idler pulley
- Idler Roller for Ribbed Belt
- Bolt
- 22 Nm
- Vibration Damper
- Removal and installation, refer to VIBRATION DAMPER
- Bolt
- Replace
- Tightening order, refer to Fig 2
- Alignment Bushing
- 2 pieces
- Bracket
- For ribbed belt tensioner
- Bolt
- Note bolt lengths
- 9 Nm
-- Tighten bolts -arrow- in diagonal sequence in 3 stages as follows:
-- Tighten the bolts to 15 Nm.
-- Tighten the bolts to 22 Nm.
-- Tighten the bolts an additional 90°.
