Special Tools

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

M8 x 35 bolt
M8 x 1.5 bolt
Hand drill with plastic brush attachment
Protective glasses
Sealant
M10 x 30 threaded pins
Locking fluid
Engine Support - Supplement Kit T40093A

Fig 1: Engine Support - Supplement Set T40093
Courtesy of AUDI OF AMERICA, LLC
Puller - Unit Injector T10055 with Puller - Unit Injector - Adapter 3 T10055/3

Fig 2: Puller Set - Unit Injector T10055
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25mm 3094

Fig 3: Hose Clamps - Up To 25mm 3094
Courtesy of AUDI OF AMERICA, LLC
Used Oil Collection And Extraction Unit SMN372500

Fig 4: Used Oil Collection And Extraction Unit SMN372500
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers VAG1921

Fig 5: Hose Clip Pliers VAG1921
Courtesy of AUDI OF AMERICA, LLC
Shop Crane - Drip Tray VAS6208

Fig 6: Shop Crane - Drip Tray VAS6208
Courtesy of AUDI OF AMERICA, LLC

Fig 7: Identifying Special Tools List -- Oil Pressure And Oil Pressure Switch, Checking

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Oil Pressure Gauge Kit VAG1342
Oil Pressure Gauge Kit - Adapter 14 VAG1342/14
Voltage Tester VAG1527B
Connector Test Set VAG1594C

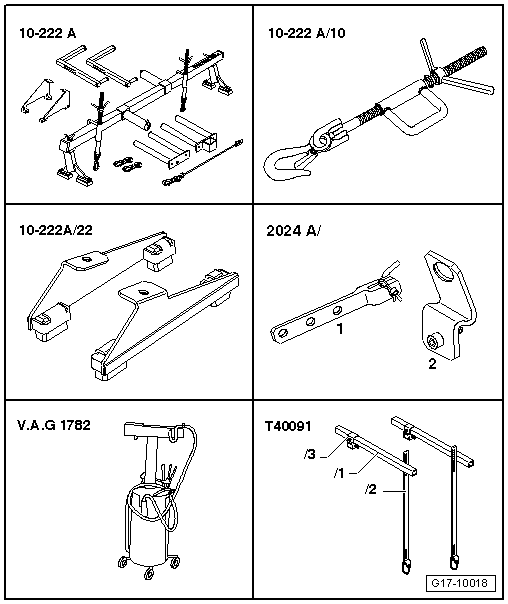

Fig 8: Identifying Special Tools List -- Oil Pan

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Engine Support Bridge 10-222A
Engine Support - Bracket w/Spindle and hook 10-222A/10, quantity: 2
Engine Support Bridge - Sub-frame Adapter 10-222A/22
Engine Sling - Cover Plate 2024A/2 from Engine Sling 2024A
Used Oil Collection And Extraction Unit SMN372500
Engine Support Basic Set T40091
