Oil Pan, Removing And Installing: Removal

Fig 1: View Of Engine Bracket Nut

Courtesy of AUDI OF AMERICA, LLC

Proceed as follows:

-- On a vehicle with air suspension, activate vehicle lift mode, refer to VEHICLE LIFT MODE .

-- Remove engine bracket left and right nuts -arrows-.

-- Remove the bolt -1-.

Fig 2: Ribbed Belt Tensioner Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Instead of using a bolt, tighten the Engine Sling - Cover Plate 2024A/2 with an M8x35 bolt -item 1-.

Fig 3: Attaching Engine Sling - Cover Plate 2024A/2 With An M8x35 Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Position Engine Support Bridge 10-222A with adapters Engine Support Bridge - Sub-frame Adapter 10-222A/22 and Connectors T40091/3 on bolted fender flanges.

Fig 4: Mounting Engine Support Set T4009

Courtesy of AUDI OF AMERICA, LLC

-- Install parts of Engine Support Basic Set T40091 and Engine Support - Supplement Kit T40093A as shown in illustration.

Fig 5: Installing Engine Support Set T4009 And Supplement Kit T40093A

Courtesy of AUDI OF AMERICA, LLC

-- Slide Supports T40091/2 with both Slides T40093/5 into both Mounts T40093/4.

Fig 6: Pushing Support T40091/2 With Both Slides T40093/5 Into Both Mounts T40093/4

Courtesy of AUDI OF AMERICA, LLC

-- Install long Engine Support Bridge 10-222A spindles and engage hooks in front engine lifting eyes and Engine Sling - Cover Plate 2024A/2.

-- Raise engine until engine supports are above engine bracket threaded pins and evenly tension both spindles to achieve even weight distribution.

-- Remove the bolts and the front -1- and rear -2- noise insulation.

Fig 7: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of distorting airbag spiral spring.

Fig 8: Steering Gear Universal Joint Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

• Separate universal joint from steering gear only when front wheels are in straight ahead position.
• Secure steering wheel with adhesive tape to prevent position of steering wheel and steering gear from changing.

-- Remove the bolt -arrow- for the universal joint. .

-- Remove universal joint from steering gear.

-- Remove coupling rods from left and right of stabilizer bar -arrow-.

Fig 9: Removing Coupling Rod From Stabilizer Bar -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Mark location of subframe and engine carrier to longitudinal members with a felt-tip pen.

-- Remove bolts -3 and 4- and lower subframe with front engine carrier.

Fig 10: Subframe, Engine Carrier And Crossmember And Bolts

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Automatic Transmission:

-- Remove bolt -arrow- on ATF line bracket.

Fig 11: ATF Line Bracket Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

Vehicles with 4-Zone Climate Control:

-- Remove bolts -1 and 2- and pull rear coolant pipes slightly to side.

Fig 12: Rear Coolant Pipe Bolts -1 & 2- And ATF Line Bolt -3-

Courtesy of AUDI OF AMERICA, LLC

All Vehicles:

Fig 13: Oil Pan, Oil Pan Bolts And Oil Level Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-- Place Used Oil Collection And Extraction Unit SMN372500 under engine and drain engine oil.

-- Disconnect the connector -2- on the Oil Level Thermal Sensor -G266-.

-- Free up electrical wiring harness on oil pan.

-- Remove oil pan to transmission connection bolts -arrows-.

-- Loosen oil pan screws -1- in a diagonal sequence and remove.

-- If oil pan is stuck, tap lightly with rubber hammer to loosen.

-- Place oil pan on subframe.

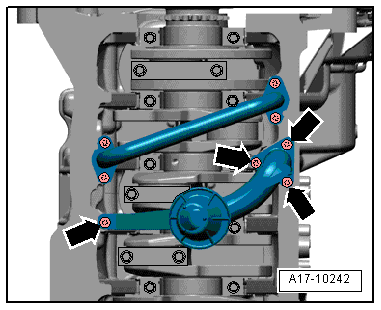

-- Remove bolts -arrows- and remove oil pump intake tubes.

Fig 14: Bolts And Oil Pump Intake Tubes

Courtesy of AUDI OF AMERICA, LLC

-- Remove oil pan.
