Multifunction Transmission Range Switch -F125-, REMOVING AND INSTALLING: Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

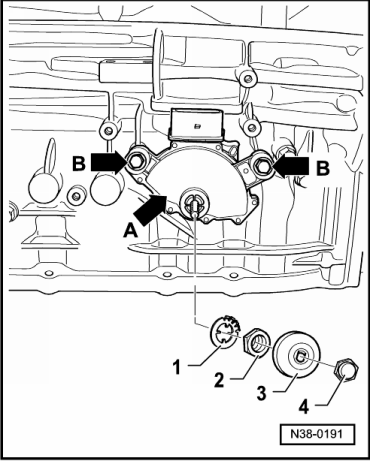

Fig 1: Identifying Cap Nut, Cover, Locking Washer, Multi-Function Transmission Range (TR) Switch -F125- & Mounting Bolts
GWWN38-0191Courtesy of AUDI OF AMERICA, LLC
