Oil Screen, Removing And Installing: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

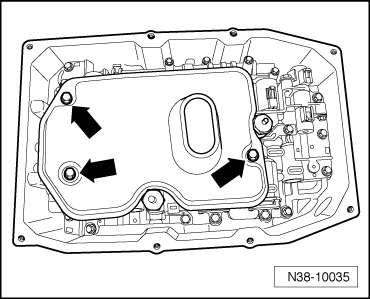

Fig 1: Identifying Oil Strainer Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan. Refer to ATF PAN, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the oil screen.

-- Remove the oil strainer sealing ring -1- from its seat in the valve body.

Fig 2: Coating New Sealing Ring

Courtesy of AUDI OF AMERICA, LLC
