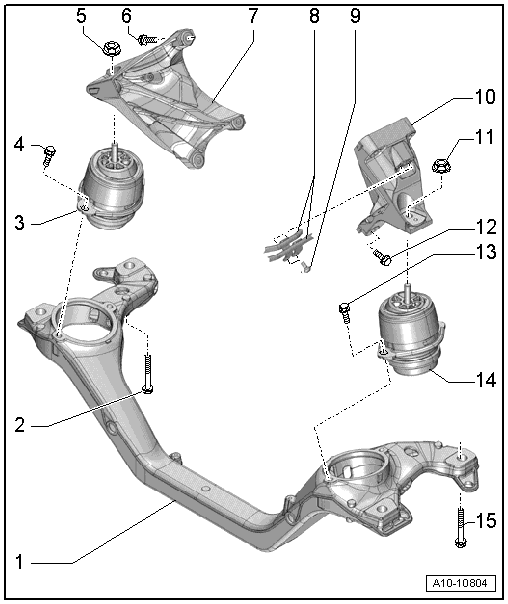

SUBFRAME Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Carrier
- Bolt
- 120 Nm plus an additional 180° turn
- Replace
- Engine Mount, Right
- Removal and installation, refer to ENGINE MOUNT
- Bolt
- 60 Nm
- Nut
- 75 Nm
- Bolt
- 50 Nm plus an additional 90° turn
- Replace
- Right Engine Support
- Not Installed
- Not Installed
- Left Engine Support
- Nut
- 75 Nm
- Bolt
- 50 Nm plus an additional 90° turn
- Replace
- Bolt
- 60 Nm
- Engine Mount, Left
- Removal and installation, refer to ENGINE MOUNT
- Bolt
- 120 Nm plus an additional 180° turn
- Replace
