SUBFRAME Overview

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

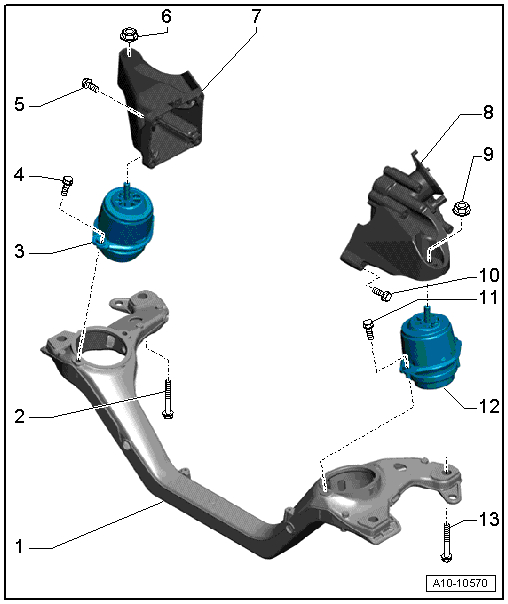

Fig 1: Subframe Overview (3.6L, Engine Code BHK & BHL)

Courtesy of AUDI OF AMERICA, LLC

Engine Support
- Removing and Installing, refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 120 Nm + 180° (¹ /₂ ) turn.
- Replace
Right Engine Mount
- Removing and Installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 60 Nm
Bolt
- Tightening specification: 40 Nm
Nut
- Tightening specification: 75 Nm
Right Engine Support
Left Engine Support with Oil Filter Housing
- Removing and Installing, refer to LEFT ENGINE SUPPORT WITH OIL FILTER HOUSING, REMOVING AND INSTALLING .
Nut
- Tightening specification: 75 Nm
Bolt
- Tightening specification: 23 Nm
Bolt
- Tightening specification: 60 Nm
Left Engine Mount
- Removing and Installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 120 Nm + 180° (¹ /₂ ) turn.
- Replace
