Engine Support, Removing And Installing: Removal

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

Proceed as follows:

-- On a vehicle with air suspension, activate vehicle lift mode, refer to VEHICLE LIFT MODE .

-- Remove the left and right engine mounts, refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the bolts and the front -1- and rear -2- noise insulation.

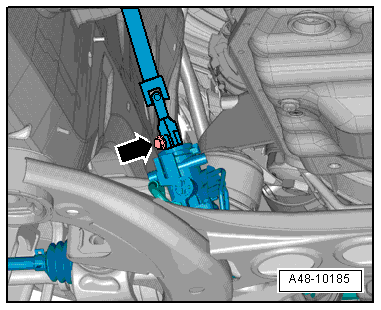

Fig 2: Identifying Universal Joint Bolt -Arrow-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of distorting airbag spiral spring.

Separate universal joint from steering gear only when front wheels are in straight ahead position.
Secure steering wheel with adhesive tape to prevent position of steering wheel and steering gear from changing.

-- Remove the bolt -arrow- for the universal joint, refer to Removing .

-- Remove universal joint from steering gear.

-- Remove coupling rods from left and right of stabilizer bar -arrow-.

Fig 3: Identifying Nut -Arrows- Securing Coupling Rod

Courtesy of AUDI OF AMERICA, LLC

-- Remove ground connection -1- from right longitudinal member.

Fig 4: Identifying Ground (GND) Cable On Longmember

Courtesy of AUDI OF AMERICA, LLC

-- Mark location of subframe and engine carrier to longitudinal members with a felt-tip pen.

Fig 5: Identifying Bolts -4- And Engine Carrier Bolts -3-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

There is the risk of an accident.

Bolts -1 and 2- must remain installed.

-- Remove bolts -3 and 4- and lower subframe with front engine carrier.

-- Remove engine carrier forward.
