Engine Mount, Removing And Installing: Removal

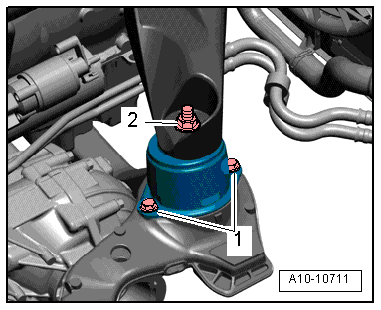

Fig 1: Identifying Left And Right Bolts -1- And Nuts -2-

Courtesy of AUDI OF AMERICA, LLC

Proceed as follows:

-- Remove left and right bolts -1- and nuts -2-.

-- Remove the bolt -1-.

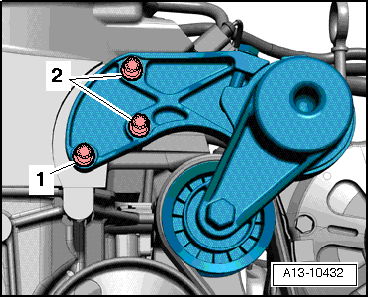

Fig 2: Identifying Bolts -1 And 2- To Ribbed Belt Tensioner

Courtesy of AUDI OF AMERICA, LLC

-- Instead of using a bolt, tighten the lifting eye Engine Sling - Cover Plate 2024A/2 with an M8x35 bolt -item 1-.

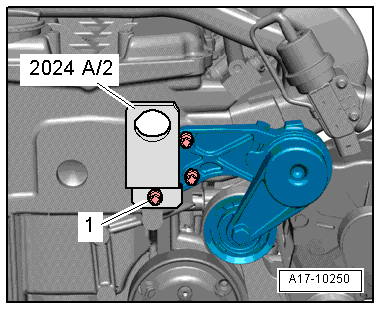

Fig 3: Attach 2024 A /2 With An M8 X 35 Bolt -1-

Courtesy of AUDI OF AMERICA, LLC

-- Position Engine Support Bridge 10-222A with adapters Engine Support Bridge - Sub-frame Adapter 10-222A/22 and Connectors T40091/3 on bolted fender flanges.

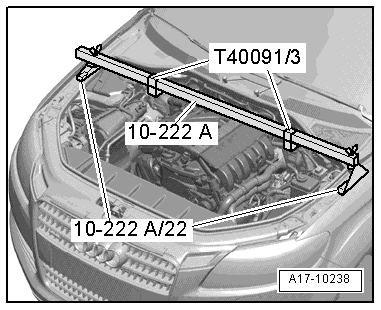

Fig 4: Mount 10 - 222 A, 10 - 222 A /22 And T40091/3 On Fender Bolting Edges

Courtesy of AUDI OF AMERICA, LLC

-- Install parts of Engine Support - Basic Set T40091 and Engine Support Supplement Set T40093 as shown in illustration.

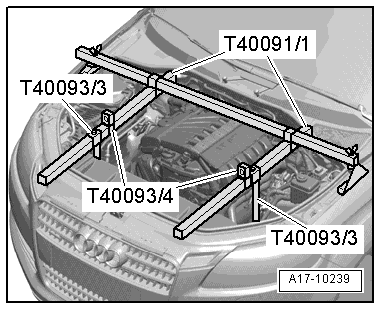

Fig 5: Setting-up Engine Support - Basic Set T40091 and Engine Support Supplement Set T40093

Courtesy of AUDI OF AMERICA, LLC

-- Slide Supports T40091/2 with both Slides T40093/5 into both Mounts T40093/4.

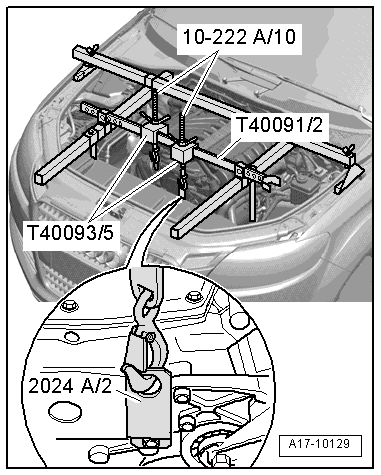

Fig 6: Push The Support T40091/2 With Both Slides T40093/5 Into Both Mounts T40093/4.

Courtesy of AUDI OF AMERICA, LLC

-- Install long Engine Support Bridge 10-222A spindles and engage hooks in front engine lifting eyes and Engine Sling - Cover Plate 2024A/2 lifting eyes.

-- Raise engine until engine supports are above engine bracket threaded pins and evenly tension both spindles to achieve even weight distribution.

-- Remove left and right engine bracket.
