Fastener Tightening Specifications

Oil Level Thermal Sensor -G266- Tightening Specification

Fig 1: Locating Oil Level Thermal Sensor G266 And O-Ring Gasket

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -1- to 9 Nm.

Lower Section of Oil Pan, Tightening Specifications and Sequence

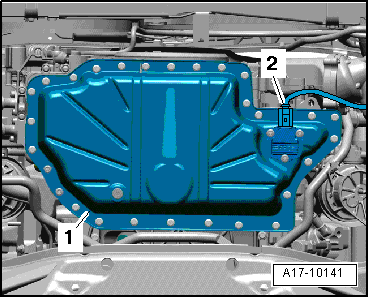

Fig 2: Locating Lower Section of Oil Pan Bolts And Oil Level Thermal Sensor G266

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in 3 stages as follows:

-- Tight bolts by hand in a diagonal sequence.

-- Pre-tighten all the bolts in a diagonal sequence to 5 Nm.

-- Tighten the bolts in a diagonal sequence to 9 Nm.

Upper Section of Oil Pan, Tightening Specifications and Sequence

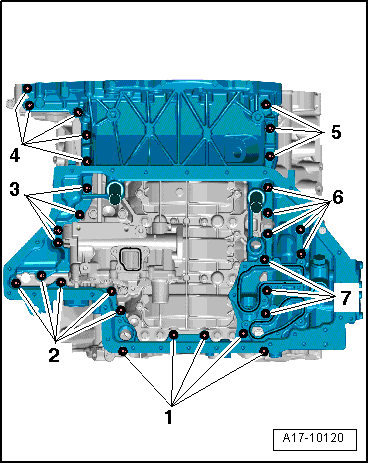

Fig 3: Removing/Installing Bolts For/To Upper Section Of Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts -1 through 7- in 2 stages as follows:

-- Pre-tighten all the bolts in a diagonal sequence to 5 Nm.

-- Tighten the bolts in a diagonal sequence to 14 Nm.

Oil Cooler - Tightening Specification

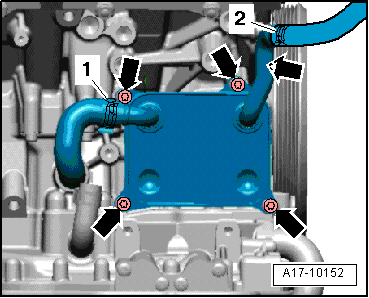

Fig 4: Locating Bolts And Oil Cooler

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts -arrows- to 9 Nm.

Oil Pressure Switch -F1- - Tightening Specification

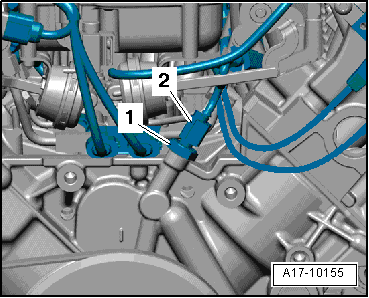

Fig 5: Locating Oil Pressure Switch F1 & Connector

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the Oil Pressure Switch -F1- -1- to 20 Nm.
