Oil Pump: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove lower oil pan. Refer to LOWER OIL PAN .

-- Remove coolant pump. Refer to COOLANT PUMP .

-- Remove driveshaft -arrow- for coolant pump from oil pump.

Fig 1: Identifying Drive Shaft For Coolant Pump From Oil Pump

Courtesy of AUDI OF AMERICA, LLC

-- Place the VAG 1782 under the engine.

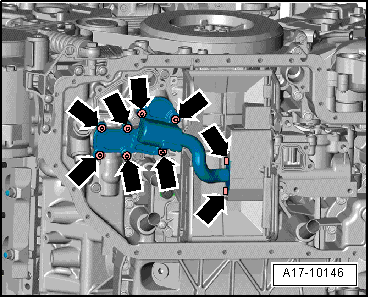

Fig 2: Identifying Bolts And Oil Pipe, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and remove oil pipe.

NOTE:

Oil escapes when removing oil pipes.

-- Remove bolts -arrows- and remove intake tube.

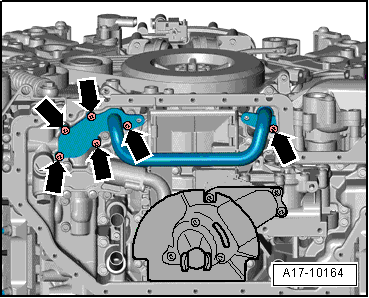

Fig 3: Identifying Bolts And Oil Intake Tube

Courtesy of AUDI OF AMERICA, LLC

-- Remove oil pipe together with oil check valve housing.

Fig 4: Identifying Oil Pipe With Oil Check Valve Housing

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Oil escapes when removing oil pipes.

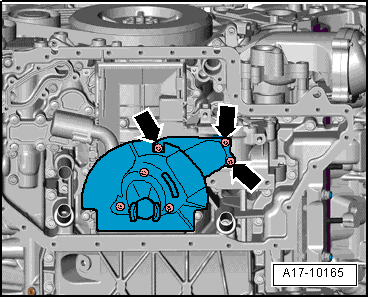

-- Press back driveshaft -1- for oil pump against spring force and clamp tightly using VAS 6226.

Fig 5: Pressing Back Drive Shaft For Oil Pump Against Spring Force And Clamping Tightly Using Long-Nose Gripping Pliers VAS 6226

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and remove oil pump.

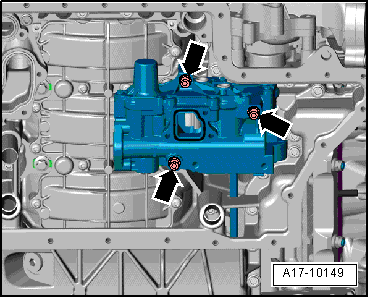

Fig 6: Identifying Bolts And Oil Pump

Courtesy of AUDI OF AMERICA, LLC
