Upper Oil Pan Overview

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

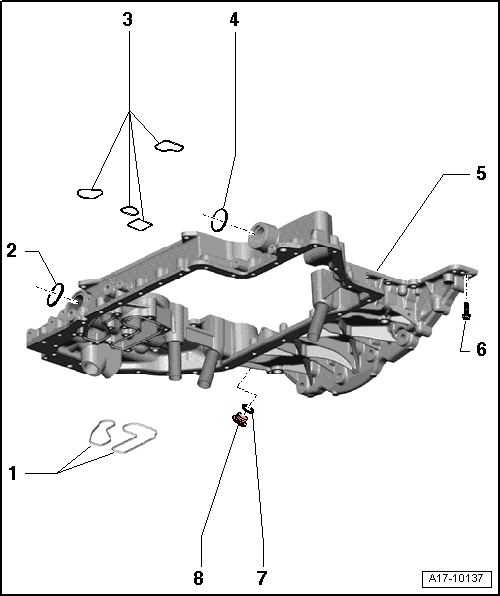

Fig 1: Upper Part Of Oil Pan, Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Seals
- Replace
O-ring
- Replace
Seals
- Replace
O-ring
- Replace
Upper Oil Pan
- Secured with 2 alignment pins
- Removal and installation, refer to UPPER OIL PAN
Bolt
- Tightening specification and sequence, refer to Fig 2
Seal
- Replace
Locking Bolt
- 35 Nm

Fig 2: Removing/Installing Bolts For/To Upper Section Of Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts -1 through 7- in 2 stages as follows:

-- Pre-tighten all the bolts in a diagonal sequence to 5 Nm.

-- Tighten the bolts in a diagonal sequence to 14 Nm.
