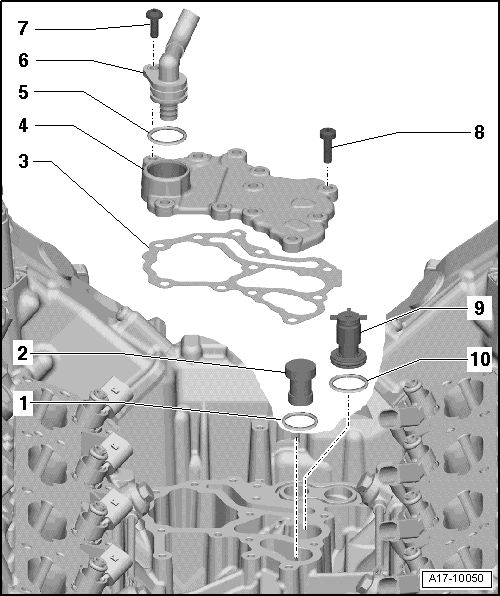

Oil Check Valve And Spray Nozzle Valve Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- O-ring
- Replace
- Spray Nozzle Valve
- Removal and installation, refer to OIL CHECK VALVE AND SPRAY NOZZLE VALVE
- Gasket
- Replace
- Cover
- O-ring
- Replace
- Hose
- For crankcase ventilation
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Oil Check Valve
- Removal and installation, refer to OIL CHECK VALVE AND SPRAY NOZZLE VALVE
- O-ring
- Replace
