Catalytic Converters, Removing And Installing: Removal

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Proceed as follows:

-- On a vehicle with air suspension, activate vehicle lift mode, refer to VEHICLE LIFT MODE .

NOTE:

When Installation, bring all cable ties back to same positions.

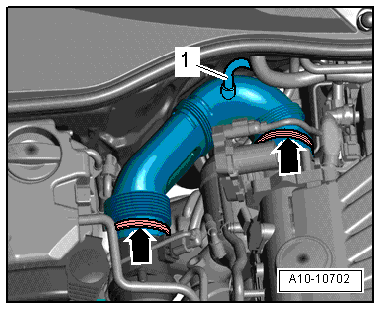

Fig 1: Air Guide Pipe And Vacuum Hose
GWWA10-10702Courtesy of AUDI OF AMERICA, LLC

-- Disconnect vacuum hose -1-.

-- Remove air guide pipe -arrows-.

-- Disconnect the connector -1- from the Throttle Valve Control Module -J338-.

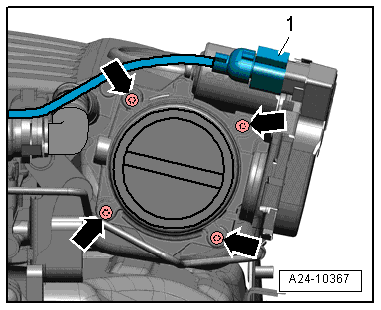

Fig 2: Locating Throttle Valve Control Module -J338- -1-
GWWA24-10367Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the Throttle Valve Control Module -J338-.

Vehicles without Mechanical Vacuum Pump:

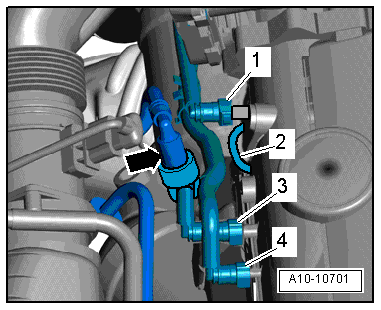

Fig 3: Identifying Vacuum Lines On Intake Manifold
GWWA10-10701Courtesy of AUDI OF AMERICA, LLC

-- Remove vacuum lines on intake manifold as follows:

1 - For EVAP Canister, press release buttons

3 - For brake booster, remove suction jet pump -arrow- from bracket and press release buttons

4 - To Leak Detection Pump -V144-, press release buttons (only on USA vehicles)

NOTE:

Ignore -Item 2-.

Vehicles with Mechanical Vacuum Pump:

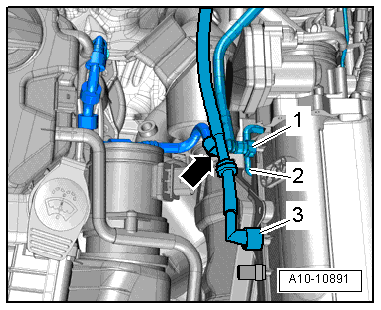

Fig 4: Identifying Vacuum Lines From Intake Manifold
GWWA10-10891Courtesy of AUDI OF AMERICA, LLC

-- Remove vacuum lines on intake manifold as follows:

1 - For EVAP Canister, press release buttons

3 - For the Brake Booster

NOTE:

Ignore -2- and -arrow -.

All Vehicles:

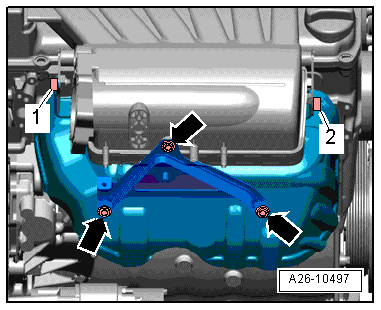

Fig 5: Identifying Intake Manifold Support Bolts -Arrow-
GWWA26-10497Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -arrows- and remove bracket.

-- Remove bolts -1 and 2- and remove heat shield.

-- Remove the oxygen sensors, refer to OXYGEN SENSORS .

-- Remove nuts on connection between pre-catalytic converters and exhaust manifold -arrows-.

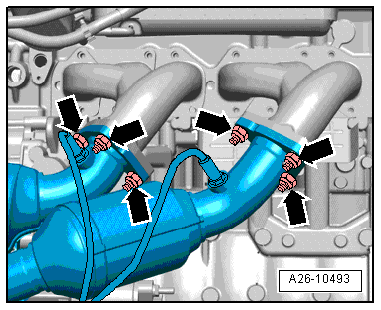

Fig 6: Identifying Exhaust Pipe With Catalytic Converter To Exhaust Manifold Nuts -Arrows-
GWWA26-10493Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts and rear noise insulation -2-.

Fig 7: Identifying Front/Rear Noise Insulation
GWWA10-10441Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation bracket -arrows-.

Fig 8: Identifying Bracket For Noise Insulation
GWWA10-10463Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1 and 2- on pre-catalytic converter bracket.

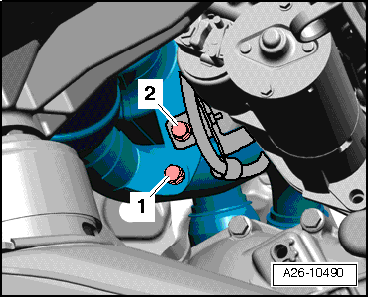

Fig 9: Identifying Primary Catalytic Converter Bracket Bolts
GWWA26-10490Courtesy of AUDI OF AMERICA, LLC

-- Remove front drive shaft heat shield -arrows-.

Fig 10: Front Drive Shaft Heat Shield
GWWA26-10311Courtesy of AUDI OF AMERICA, LLC

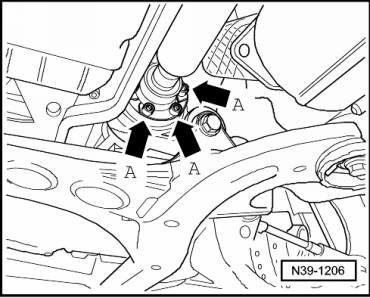

-- Remove bolts on connection between drive shaft and final drive -A arrows- and lay drive shaft aside.

Fig 11: Drive Shaft From Front Rear Final Drive, Remove/Install
GWWN39-1206Courtesy of AUDI OF AMERICA, LLC

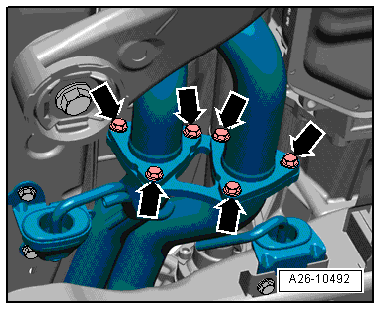

Fig 12: Identifying Bolts -Arrows-, Primary Catalytic Converter Pipes, And Clamping Sleeves
GWWA26-10492Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging decoupling elements.

  • Do not bent decoupling elements in front exhaust pipe more than 10°.

-- Remove pre-catalytic converters from main catalytic converters -arrows-.

-- Remove pre-catalytic converters downward.
