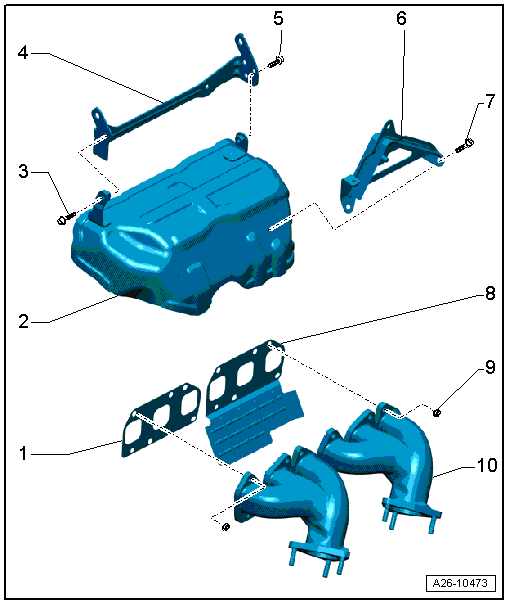

Exhaust Manifold Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Replace
- Heat Shield
- Bolt
- Tightening specification: 20 Nm
- Bracket
- Bolt
- Tightening specification: 20 Nm
- Bracket
- Bolt
- Tightening specification: 20 Nm
- Seal
- With heat shield.
- Replace
- Nut
- Tightening specification: 23 Nm
- Replace
- Exhaust Manifold
- Removing and Installing, refer to EXHAUST MANIFOLD, REMOVING AND INSTALLING .
