Removal And Installation: Radiator: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When assembled correctly, the radiator and condenser may have slight indentations on their fins. This is not damage. Radiators or condensers should not be replaced because of slight impressions like these.

-- Discharge refrigerant circuit. Refer to REFRIGERANT CIRCUIT, SERVICING .

-- Drain the coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .

-- Remove fan shroud. Refer to FAN SHROUD .

-- Remove air guide hose -arrow- to Secondary Air Injection (AIR) pump from upper section of air filter housing.

Fig 1: Locating Air Guide Hose -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -1- at Engine Coolant Temperature (ECT) sensor on Radiator outlet -G83-.

Fig 2: Identifying Engine Coolant Temperature (ECT) Sensor (On Radiator) G83 And Upper Coolant Hose Connection

Courtesy of AUDI OF AMERICA, LLC

-- Lift the retaining clip -2- and remove the upper coolant hose from the radiator.

-- Remove coolant hose -arrow- to radiator from right coolant pipe.

Fig 3: Identifying Quick Coupling On Upper Cooler And Lower Hose On Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Separate the electrical connector -1-.

Fig 4: Identifying Refrigerant Lines From A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items - 2 and 3-.

CAUTION:

Risk of damaging coolant lines and hoses.

Do not stretch, kink or bend coolant lines and hoses.

-- Remove refrigerant lines -1 and 2- from condenser.

Fig 5: Identifying Refrigerant Lines Bolts

Courtesy of AUDI OF AMERICA, LLC

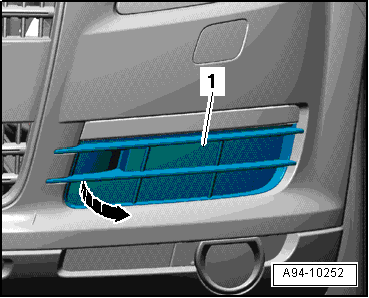

-- Remove air intake grille -1- in upper section of bumper cover -arrow-.

Fig 6: Air Intake Grille -1- In Upper Part Of Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right radiator locking mechanism by pressing down against clamps -arrow-.

Fig 7: Identifying Left And Right Radiator Locking Mechanism Pressing Down Against Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -2- on rear side of radiator.

Fig 8: Identifying Hydraulic Fluid Cooler Bolt -2- And Power Steering Cooler -1-

Courtesy of AUDI OF AMERICA, LLC

-- Disengage power steering cooler -1- at Air Conditioning A/C) system condenser.

-- Remove bolts -1- on rear side of radiator.

Fig 9: Identifying Screws On Rear Side Of Radiator

Courtesy of AUDI OF AMERICA, LLC

-- Press off retaining clips -2 and 3-.

-- Remove ATF cooler -4- from radiator.

-- Remove bolts at left and right of lock carrier -2-.

Fig 10: Bolts -2

Courtesy of AUDI OF AMERICA, LLC

-- Swing radiator on upper side back and remove coolant hose -1-.

-- Remove radiator upward out of engine compartment.

-- Remove bolts -3- on rear side of radiator.

Fig 11: Identifying A/C System Condenser, Retaining Clips And Screws

Courtesy of AUDI OF AMERICA, LLC

-- Press off retaining clips -2 and 4-.

-- Remove A/C system condenser -1- from radiator.
