Map Controlled Engine Cooling Thermostat: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .

-- Disconnect electrical connector -2- at map controlled engine cooling thermostat -F265-.

Fig 1: Identifying Drain Plug At Coolant Thermostat Housing

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -1-.

-- Remove coolant hoses -1 and 2- from coolant thermostat housing.

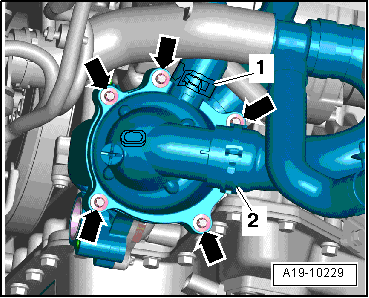

Fig 2: Identifying Coolant Hose, Bolts & Coolant Thermostat Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove map controlled engine cooling thermostat -F265- housing.
