Front Coolant Pipe: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .

-- Place VAS 6208 under engine.

-- Remove the bolts -arrows-.

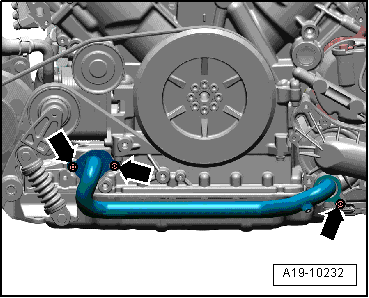

Fig 1: Identifying Bolts Of Front Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Remove front coolant pipe from engine and from coolant pump.
