Fan Shroud: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

-- Switch off ignition.

-- Remove cover over radiator -arrows-.

Fig 1: Cover Over Radiator -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove air guide hose -arrow- from connecting hose to Secondary Air Injection (AIR) combi-valves.

Fig 2: Identifying Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

-- Unclip front differential breather line -arrow- from brake system vacuum pump -V192-.

Fig 3: Identifying Transmission Ventilation Hose

Courtesy of AUDI OF AMERICA, LLC

-- Unclip air guide hose -1- to Secondary Air Injection (AIR) pump.

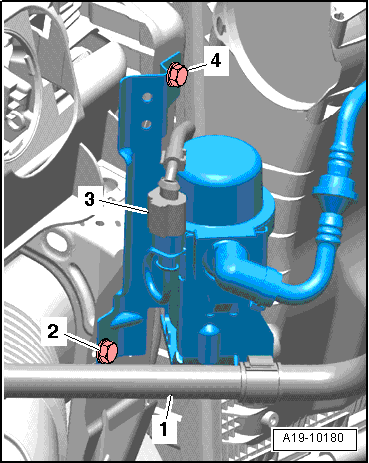

Fig 4: Identifying Air Guide Hose -1-, Bolts -2- And -4-, And Electrical Connector -3-

Courtesy of AUDI OF AMERICA, LLC

-- Separate the electrical connector -3-.

-- Remove bolts -2- and -4- and lay aside brake system vacuum pump -V192-.

-- Remove screws and remove front noise insulation -1-.

Fig 5: Identifying Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of injury from coolant fan starting by itself.

Before working in fan shroud area, disconnect electrical connectors.

-- Remove screws -1, 4, 5, 6- on fan shroud.

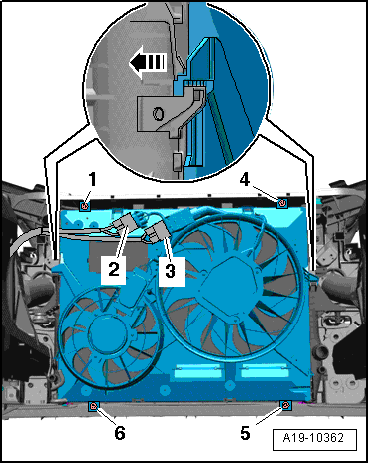

Fig 6: Identifying Screws And Connectors On Fan Mount And Pressing Locking Tabs At Left And Right On Fan Shroud -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connectors -2 and 3 - and free up electrical wiring.

-- Press locking tabs and left and right of fan shroud -arrow- and at the same time, lift fan shroud out of engine compartment.
