Fan Shroud And Coolant Fan Overview

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

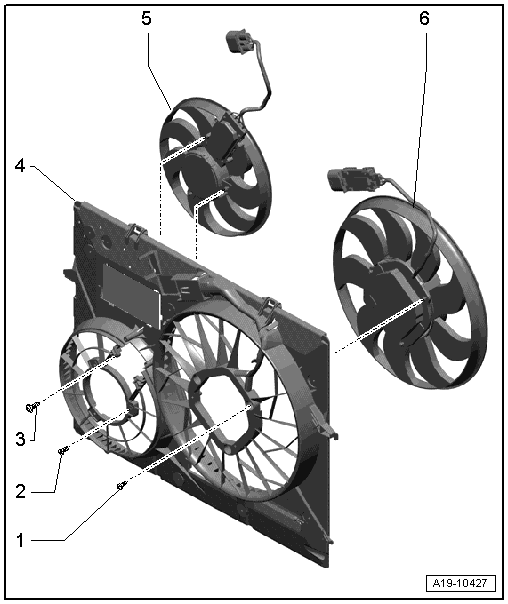

Fig 1: Fan Shroud And Coolant Fan Overview
GWWA19-10427Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 10 Nm
  2. Bolt
    • 10 Nm
  3. Bolt
    • 5 Nm
  4. Fan Rib
  5. Coolant Fan 2 -V177- with Coolant Fan Control (FC) Module 2 -J671-
  6. Coolant Fan -V7- with Coolant Fan Control (FC) Module -J293-
