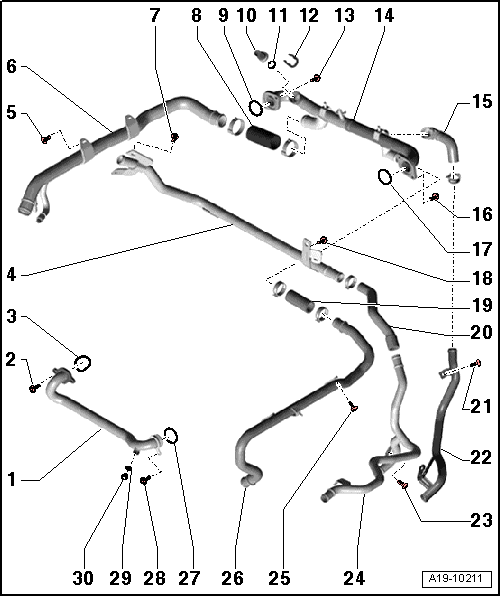

Coolant Pipes Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Coolant Pipe
- Removal and installation, refer to FRONT COOLANT PIPE
- Bolt
- 8 Nm plus an additional 90° turn
- Replace
- O-ring
- Replace
- Rear Right Coolant Pipe
- Removal and installation, refer to REAR RIGHT COOLANT PIPE
- Bolt
- 9 Nm
- Right Coolant Pipe
- Removal and installation, refer to RIGHT COOLANT PIPE
- Bolt
- 9 Nm
- Coolant Hose
- O-ring
- Replace
- Engine Coolant Temperature (ECT) Sensor -G62-
- Removal and installation, refer to Engine Coolant Temperature Sensor -G62-
- O-ring
- Replace
- Retaining Clip
- Bolt
- 9 Nm
- Rear Coolant Pipe
- Removal and installation, refer to REAR COOLANT PIPE
- Coolant Hose
- With connection coupling
- Bolt
- 9 Nm
- O-ring
- Replace
- Bolt
- 9 Nm
- Coolant Hose
- Coolant Hose
- Bolt
- 9 Nm
- Rear Left Coolant Pipe
- Removal and installation, refer to REAR LEFT COOLANT PIPES
- Bolt
- 9 Nm
- Rear Left Coolant Pipe
- Removal and installation, refer to REAR LEFT COOLANT PIPES
- Bolt
- 9 Nm
- Left Coolant Pipe
- Removal and installation, refer to LEFT COOLANT PIPE
- O-ring
- Replace
- Bolt
- 8 Nm plus an additional 90° turn
- Replace
- Seal
- Replace
- Drain Plug
- 10 Nm
