Ribbed Belt TENSIONER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

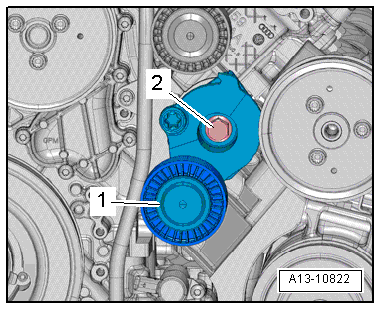

Fig 1: Identifying Ribbed Belt Tensioner, Vehicles Through My 2013
GWWA13-10822Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the tensioner. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the bolt -2- and remove the ribbed belt tensioner -1-.
