Overview - Ribbed Belt Drive

WARNING: This page is about a different car, the 2015 Audi Q7, 2014 Audi Q7, and 2013 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

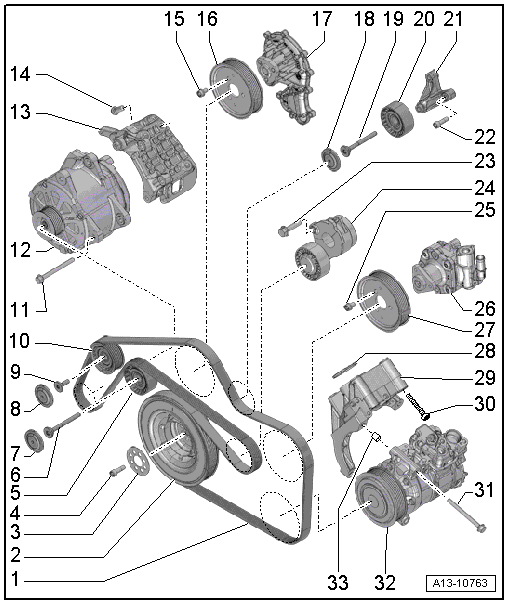

Fig 1: Overview Of Ribbed Belt Drive, Vehicles Through My 2013

Courtesy of AUDI OF AMERICA, LLC

Ribbed Belt
- Check for wear
- Before removing, mark the direction of rotation using chalk or a felt-tip pen.
- Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
- Do not kink
- When installing, make sure it is seated correctly on the ribbed belt pulleys
Vibration Damper
- With ribbed belt pulley
- Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
Washer
Bolt
- 20 Nm +90°
- Replace
Idler Roller
- For the ribbed belt
Bolt
- 23 Nm
Cover
- For the idler roller
Cover
- For the idler roller
Bolt
- 23 Nm
Idler Roller
- For the ribbed belt
Bolt
- Tightening specifications: 1 Nm. .
Generator
- Removing and installing. Refer to GENERATOR, REMOVING AND INSTALLING .
Bracket
- For the generator
Bolt
- Tighten in 2 steps:
  - 5 Nm diagonally
  - 40 Nm diagonally
Bolt
- Tightening specification -Item 3- OVERVIEW - COOLANT PUMP .
Ribbed Belt Pulley
- For the coolant pump
Coolant Pump
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING .
Cover
- For the idler roller
Bolt
- 23 Nm
Idler Roller
- For the ribbed belt
Bracket
- For the idler roller
Bolt
- 23 Nm
Bolt
- 50 Nm +90°
- Replace
Tensioner
- For the ribbed belt
- Different versions with or without tensioner washer. Refer to Fig 2
- Removing and installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 10Nm. .
Power Steering Pump
- Removing and installing. Refer to POWER STEERING PUMP, REMOVING AND INSTALLING .
Ribbed Belt Pulley
- For power steering pump
Seal
- Replace
Bracket
- For the assemblies
- Removing and installing. Refer to LEFT LOWER COOLANT PIPE ON ENGINE, REMOVING AND INSTALLING .
Bolt
- Tighten in 2 steps:
  - 5 Nm diagonally
  - 40 Nm diagonally
Bolt
- Tightening specification: 10 Nm. .
Air Conditioning (A/C) Compressor
- Removing and installing. Refer to COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
Alignment Sleeve
- Quantity: 2

Fig 2: Allocation For Tensioner Washer

Courtesy of AUDI OF AMERICA, LLC

1 - Sealing flange WITH tensioner pad

-- Install the tensioner WITHOUT a washer

2 - Sealing flange WITHOUT a tensioner pad

-- Install the tensioner WITH a washer.

Fig 3: Tensioner With Washer For Sealing Flange Without Pad

Courtesy of AUDI OF AMERICA, LLC

1 - Tensioner

2 - Bolt - tightening specification -Item 23- OVERVIEW - RIBBED BELT DRIVE.

3 - Washer - not for sealing flange without pad

4 - Sealing flange - without pad
