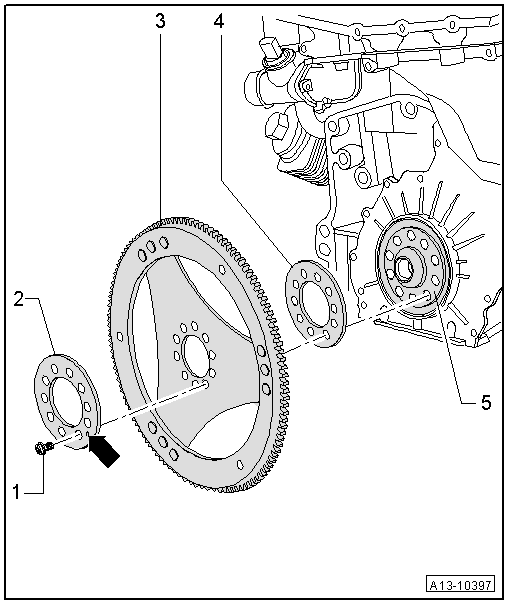

Drive Plate Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Drive Plate
- Removing and Installing, refer to DRIVE PLATE, REMOVING AND INSTALLING .
- Washer
- The dimple -arrow- faces toward the transmission side.
- Bolt
- 60 Nm + 90° (1 /4 ) turn.
- Replace
- Crankshaft
- Spacer
- Installation location: one hole offset from the center.
