Fan, Removing And Installing: Removing

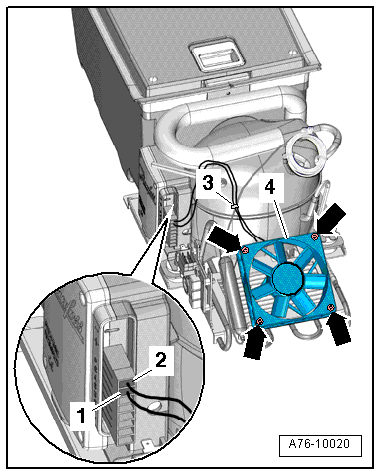

Fig 1: Identifying Fan, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Cooler -J698-. Refer to Cooler -J698-, REMOVING AND INSTALLING .

-- Disconnect the connectors -1- and -2- on the cooler-compressor control module.

-- Cut the cable tie -3-.

-- Remove the bolts -arrows-.

-- Remove the fan -4-.
