Circuit Board, Removing And Installing: Removing

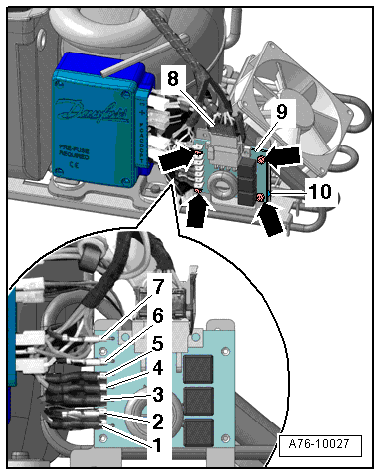

Fig 1: Identifying Electrical Connectors -1 Through 7, Electrical Harness Connector -8, Circuit Board -9 And Spacer Bushings -10-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Cooler -J698-. Refer to Cooler -J698-, REMOVING AND INSTALLING .

-- Disconnect the electrical connectors -1 through 7-.

-- Disconnect the connector -8-.

-- Remove the bolts -arrows-.

-- Remove the circuit board -9-.
